Commercial Security Shutters

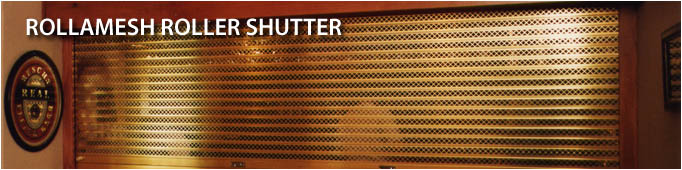

Rollamesh Shop Security Shutters
PROFILE DATA
Rollamesh is made from extruded aluminium profile which interlock to form a continuous security panel to protect windows and doors against vandals, burglars and the elements.
In commercial applications, Rollamesh allows viewing of window displays and saleable merchandise while providing total security.
Rollamesh and Commercial Forceshield profiles can be intermixed in any configuration to allow as much or as little visibility through the shutter as desired, to form Security Mesh 1-1
TECHNICAL DATA
Material: Extruded high temper aluminiumMaterial gauge: 1.5mm
Slat coverage: 43mm
Finishes: DULUX Powdercoat
Max. Shutter width: 2800mm
Shutter weight: 5kg/m2
Guide tracks: Aluminium 65mm x 19mm
Methods of operation: Hand spring lift (manual), Electric (240v or 12v)
Option: Remote Control (240v or 12v), Key lockable bottom bar, Master control.
AUSTRALIAN MADE
Rollamesh is designed, manufactured and assembled in Australia.
APPLICATION
The Aluminium 43mm profile is suited to commercial installations such as Counter Tops, Bar Tops, Retail Shopfronts. It provides excellent protection against intruders.
MANUFACTURE
Manufactured from 6060T5 aluminium, the extrusion is then punched with a X pattern. Powder coated or anodised to give maximum durability under all conditions.
SPECIFICATIONS OF 43mm EXTRUDED ROLLAMESH PROFILE
SPECIFICATIONS OF PROFILE
Max Shutter width: 2800mm |
ROLL DIAMETER
| Box Size | Shutter Height |
| 145mm | 800mm |
| 165mm | 1250mm |
| 200mm | 1900mm |
| 250mm | 2600mm |
| 300mm | 3500mm |
