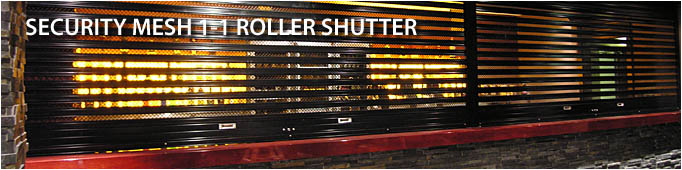

Security Mesh 1-1 is a UNIQUE roller shutter created when our products Rollamesh and Commercial Forceshield are combined.

Rollamesh is made from extruded aluminium which is punched with an X pattern. This allows visibility and air flow. Commercial Forceshield is also an extruded aluminium profile but is solid with no punching of holes. The combination of the two provides an extremely strong roller shutter for commercial applications but with the added bonus of air, light and visibility.

The two products are combined in equal amounts to form Security Mesh 1-1 Alternating the two slats: 1 x Commercial Forceshield, 1 x Rollamesh. In commercial applications, Security Mesh 1-1 allows viewing of window displays and saleable merchandise while providing total security.

Application

This product is ideally suited to commercial applications such as shopfronts, banks and bars.

SPECIFICATIONS OF SECURITY MESH 1-1 PROFILE

Type

Extruded 6060T5

Material Gauge

2 x 1.5mm

Slat Thickness

10mm

Weight/m2

7kg/m2

Standard Colours

White, Cream, Beige, Black
Guide Tracks Aluminium 66mm x 25mm
Operation Hand Spring with key locking or Electric motor with auto locking

Box Size

Max. Shutter Height
(incl roll)

Max. Shutter Width

180mm

1400mm

4000mm

205mm

1800mm

4000mm

250mm

2450mm

4000mm

300mm

3100mm

4000mm
